Industrial-Grade Display Solution
LG Display Reveals New 23.8-inch Full HD IPS Panel for Professional and Industrial Use
Anonymous
Key Points
1
Pixel pitch is 0.2745 mm, yielding about 92.6 PPI, with an accompanying desktop viewing-distance recommendation of roughly 50–70 cm to balance clarity and embedded-system GPU load.
2
The panel uses LG Display's IPS technology, which the articles describe as aligning liquid crystals parallel to the glass substrates and delivering wide viewing angles and stable color reproduction across off-axis viewing.
3
The coverage consistently highlights interface compatibility and replacement-readiness as a core selling point, underscoring suitability for integrators and repair workflows.
4
Across five outlets, the same specification content is published with minimal deviation, indicating syndicated press-release-level coverage of the LM238WF2-SSR2 specs.

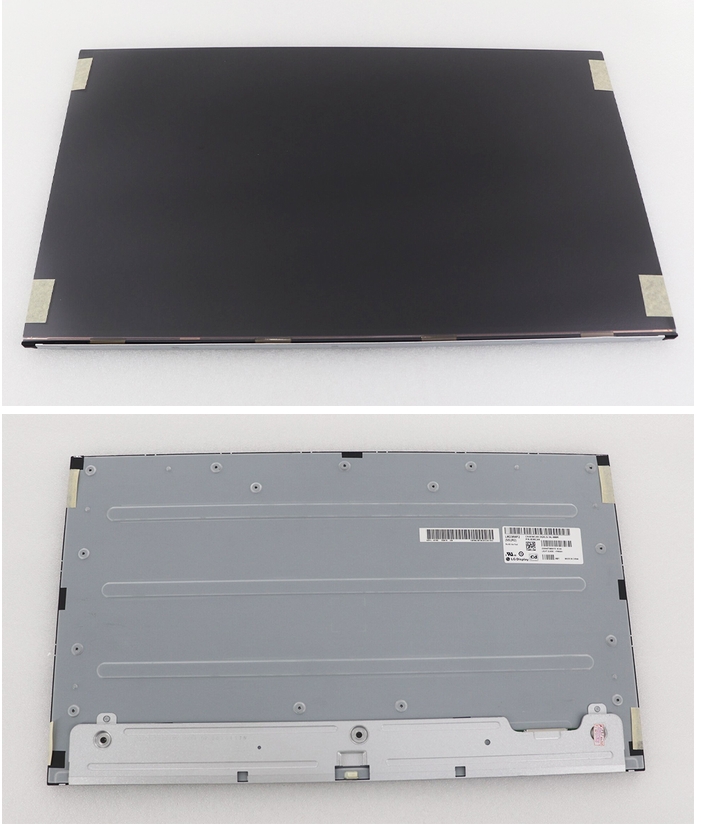

LG Display has detailed the LM238WF2-SSR2, a 23.8-inch IPS LCD panel built for office desktops, embedded systems, and industrial displays. The SSR2 revision sets this panel apart from other LM238WF2 variants with a specific set of specs aimed at integrators and repair technicians, according to Press Release CC.
The panel runs at 1920x1080 Full HD resolution and hits about 92.6 pixels per inch. Brightness tops out at 250 cd/m², and contrast sits at 1000:1. These numbers point to a workhorse display built for reliability, not color-critical design work, Financial Content reported.
IPS Technology Delivers Wide Angles at Low Power
The LM238WF2-SSR2 uses LG Display's IPS technology. IPS works by aligning liquid crystals parallel to the glass substrates. That design gives the panel wide viewing angles and stable color from off-axis positions, according to Press Release CC.
Brightness is capped at 250 cd/m². That is modest compared to consumer monitors, which often hit 350–400 cd/m². The lower brightness keeps power use and heat down — a key goal for embedded and industrial environments, Financial Content noted.
Color Depth and Gamut Target Office, Not Studio Use
The panel uses 8-bit color depth, achieved through a 6-bit panel plus FRC. FRC stands for frame rate control — a method that rapidly switches pixels to simulate more color shades. The result is 16.7 million displayable colors, Press Release CC reported.
Color gamut sits at 72% NTSC, which works out to roughly 96–100% of the sRGB color space. That is enough for most office and productivity tasks. It falls short of the wider P3 or Adobe RGB gamuts that graphic designers and photographers need, according to Financial Content.
Pixel Pitch and Viewing Distance Guide Desk Setup
The pixel pitch on the LM238WF2-SSR2 is 0.2745 mm. At 92.6 PPI, text and images look sharp at typical desk distances. LG recommends sitting roughly 50–70 cm from the screen. That range also keeps the workload on embedded system GPUs manageable, Press Release CC explained.
The 23.8-inch diagonal fits the most common monitor size sold today. That makes the SSR2 a practical drop-in replacement for aging office and industrial displays without requiring changes to the surrounding hardware frame or mounting bracket.
Replacement-Ready Design Targets Integrators and Repair Shops
Interface compatibility is a headline feature of the SSR2 revision. The coverage consistently highlights this as a core selling point for system integrators and repair technicians, according to Press Release CC and Financial Content. The panel is built to slot into existing setups with minimal friction.
The same specification data appeared across multiple outlets with almost no differences. That pattern suggests the coverage stems from a single syndicated press release rather than independent reporting. Buyers should treat the specs as manufacturer-supplied figures and verify them against their specific integration requirements.
